「シンプル架線」重機・ドローンが入れない斜面・谷の運搬技術
Simple overhead lines - Transport steep, narrow path
シンプル架線は最も単純な架線方式による運搬技術です。
重機やドローンが入れない、険しい斜面や谷でお使いだけます。
- シンプル架線は林業架線の技術から生まれました。
- 山仕事に使い易くするため、設置のハードルを一気に下げました。
- 固定索1本、動索1本、動力1個、搬器1個で構成されます。
- システム総額予算は100万円前後(買取)。
- 比較対象:ケーブルクレーン・モノレール・人肩運搬とお比べください。
- 必要資格:玉掛け
【用途】
- 森林土木・地質調査・ボーリング・法面工・足場工・支保工・仮設工・造園・特殊伐採業・農林産業向け。
- 資機材・農林産物の運搬
- 災害復旧や森林整備における、ガレキ・危険⽊・倒⽊・流⽊の除去
- 重機や⾞両が寄り付けない場所や、転落リスクや保護物件への接触リスクがある場所で、経路を定めた運搬が可能
Simple overhead lines are the simplest overhead line transportation technology.
- Can be used on steep slopes and valleys where heavy machinery and drones cannot enter.
- Born from forestry overhead line technology.
- The hurdles to installation have been significantly lowered to make it easier to use in slope work.
- It consists of one fixed rope, one moving rope, one power unit, and one carriage.
- The total system budget is around 1 million yen (purchase).
- Comparison: Compare with cable cranes, monorails, and shoulder transport.
- Qualifications: Slinging
[Uses]
- For forest engineering, geological surveys, boring, slope work, scaffolding, shoring, temporary construction, landscaping, arboriculture, and the agricultural and forestry industries.
- Transportation of equipment and materials, agricultural and forestry products
- Removal of debris, dangerous trees, fallen trees, and driftwood in disaster recovery and forest maintenance
- Allows for transport along set routes in places where heavy machinery and vehicles cannot approach, or where there is a risk of falling or coming into contact with protected property.

「ブレーキ付き搬器」が 架線の設置を楽チンに
Brake-equipped carriage - Reduce ropes, motors

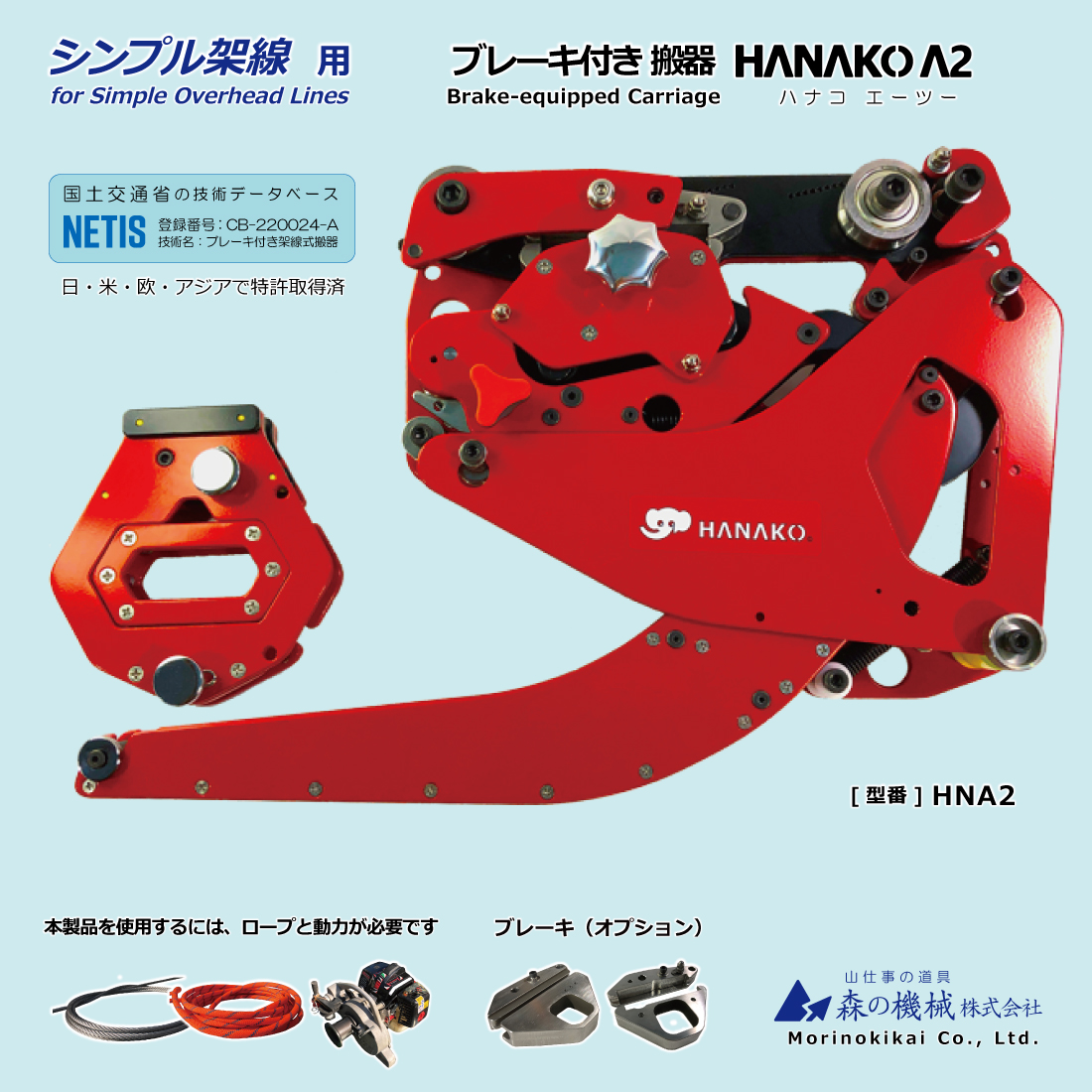

「ブレーキ付き搬器」HANAKO A2 は張力駆動によるブレーキで停止・移動する搬器です。
【原理】
- ブレーキは本体を通過する動索1本の張力により機械動作します。電気・油圧を使いません。
- 荷の高さに従ってブレーキが自動的にスイッチすることにより荷の昇降と移動を実現します。
【用途】
- シンプル架線の搬器として使用します。
【性能等】
- 荷の昇降と移動を動力1つ(動索1本)で果たします。動力を内蔵せず、目的地側に設置されたポータブルウインチなどの動力から張力を得ます。
- 空中運搬100kgf、下り−40°〜上り+40°(⽔平運搬含む)の傾斜に対応
- 荷の昇降と移動を動力1つ(動索1本)で果たします。
- 単純な機械動作によるため習得が早く、メンテナンス性に優れます。
- ブレーキ交換により繊維/ワイヤーいずれの固定索ロープにも対応
- 空搬器が任意位置で停⽌。そのため荷掛け・外しの際に繋ぎ⽌め不要
- 本体はジュラルミン製8.5キロと軽量のため⼈⼿による搬⼊・設置が可能
- 必要資格:玉掛け
【評価】
- NETIS登録技術(CB-220024-A、ブレーキ付き架線式搬器)として経済性、⼯程、環境⾯で⾼評価。
- ⽇本、⽶国、欧州・アジア主要国で特許取得済み。
Brake-equipped carriage HANAKO A2 is a carriage that stops and moves using a tension-driven brake.
[Principle]
- The brake is mechanically operated by the tension of a single moving rope that passes through the main body. It does not use electricity or hydraulics.
- The brake automatically switches according to the height of the load, enabling lifting and movement of the load.
[Application]
- Used as a carriage for simple overhead lines.
[Performance, etc.]
- The lifting and movement of the load is achieved with a single power source (one moving rope). Since no built-in power source, the rope tension is obtained from a portable winch or other power source installed at the destination.
- Aerial transport of 100kgf, compatible with slopes of -40 degrees down to +40 degrees up (including horizontal transport)
- Simple mechanism makes it easy to learn and maintain.
- Compatible with fixed ropes of either fiber or wire by replacing the brakes
- No-load carriage can be stopped at any position. Therefore, no tying is required when loading or unloading loads
- The main body is made of duralumin and weighs only 8.5 kg, making it possible to load and set up manually
- Qualifications: Slinging
[Evaluation]
- Highly evaluated as a NETIS registered technology (CB-220024-A, overhead wire carriage with brakes) in terms of economy, process, and environment.
- Patents granted in Japan, the United States, and major European and Asian countries.
