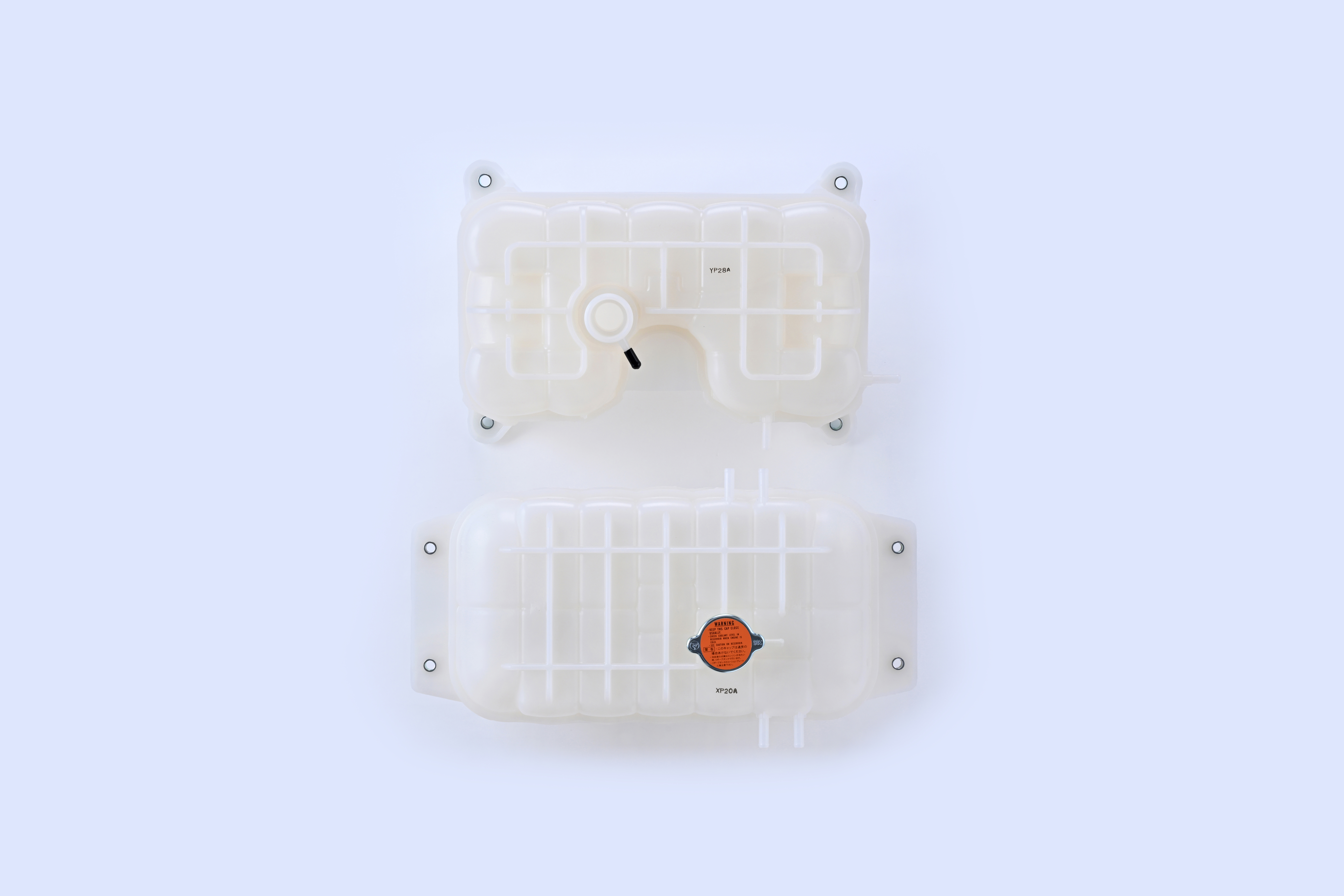

冷却水用加圧式リザーバタンク
Coolant Reservior Tank
調圧弁付きキャップを装着し、タンクの内圧を上げることにより冷却水の沸点を高めてエンジンのオーバーヒートを防ぐ役割を担う。
安定した気液分離性能と高温・加圧環境下での高い耐久性を持つタンクをご提案。
Coolant reservior pressure tank equipped with pressure relief functioned cap features stable performance of gas-liquid separation and durable operation under high pressure and high temperature conditions.

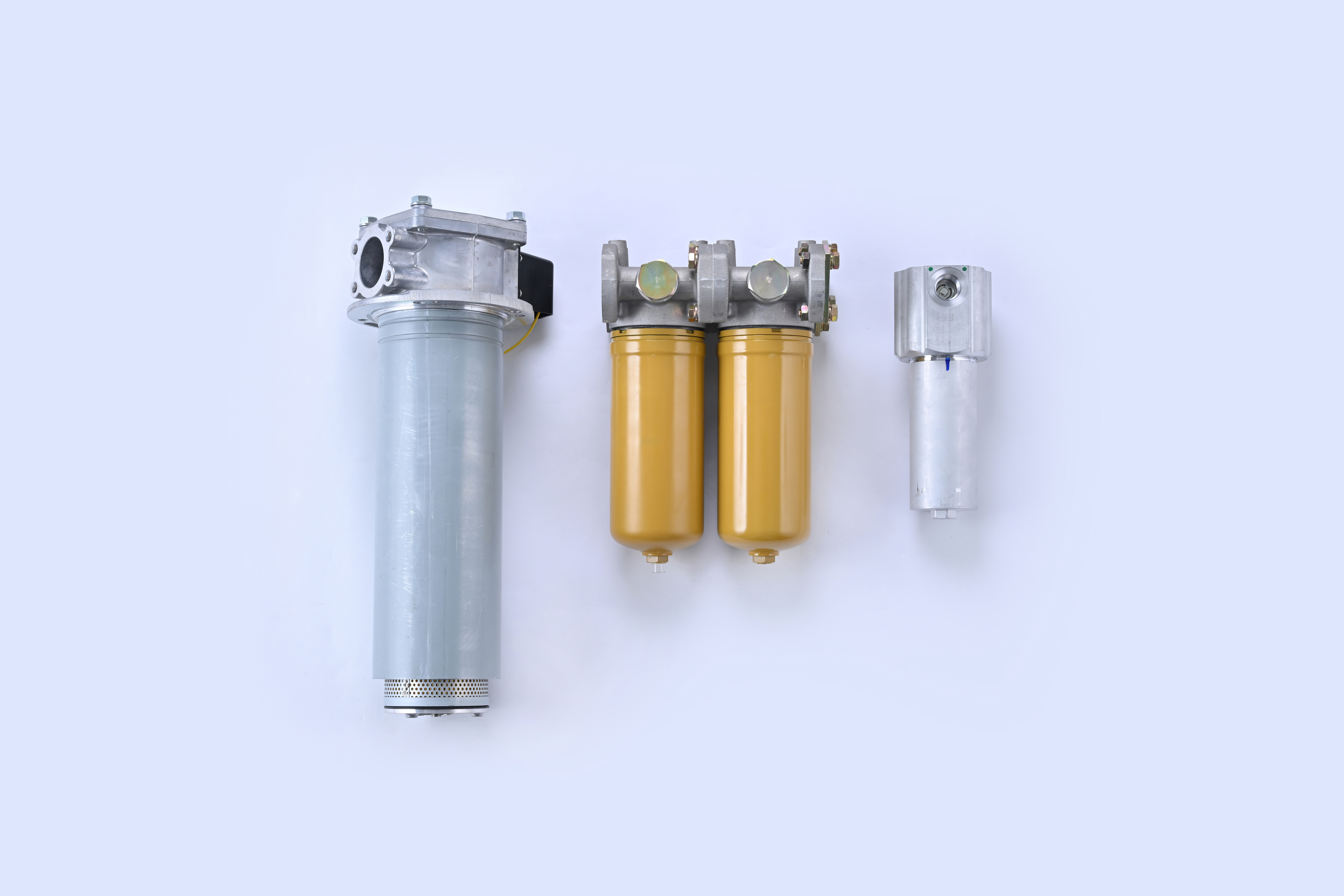

建機・農機用各種フィルタ
Hydraulic Filter(Construction/Agricultural Machinery use)
リターンフィルタ
油圧ラインに供給する作動油全体の清浄度を維持する為のフィルタ。
タンク内設置タイプとリターンラインに設置する大型スピンオンタイプ(使用圧2㎫)があり、高精度・低圧損仕様による大流量対応が可能。
ラインフィルタ
スピンオンフィルタと同様に油圧機器の保護として使用されるフィルタ。
油圧シリンダ供給油圧回路のメイン回路、トランスミッションやチャージポンプラインなどのサブ回路に搭載。
ろ過比率に優れ、4㎫~21㎫までの使用圧力に対応が可能。
スピンオンフィルタ
油圧回路内に設置され、油圧機器の保護として、摩耗紛や異物などを取り除くためのフィルタ。
ろ過比率に優れ、0.7㎫~5㎫までの使用圧力に対応が可能。
Return filter
To maintain the cleanliness of hydraulic oil supplied to hydraulic circuit.
In-tank type and return line type(Spin-on, operation pressure 2Mpa)Capable for high oil flow with high efficiency and less pressure loss.
Line Filter
To protect hydraulic system, Line Filter remove contaminants in hydraulic oil in hydraulic circuit.
Installed in main hydraulic oil circuit and transmission/charge pump line.
Pressure range 4.0-21.0Mpa.
Spin-on Filter
To protect hydraulic system, Spin-on Filter remove contaminants in hydraulic oil in hydraulic circuit.
Pressure range 0.7-5.0Mpa.
