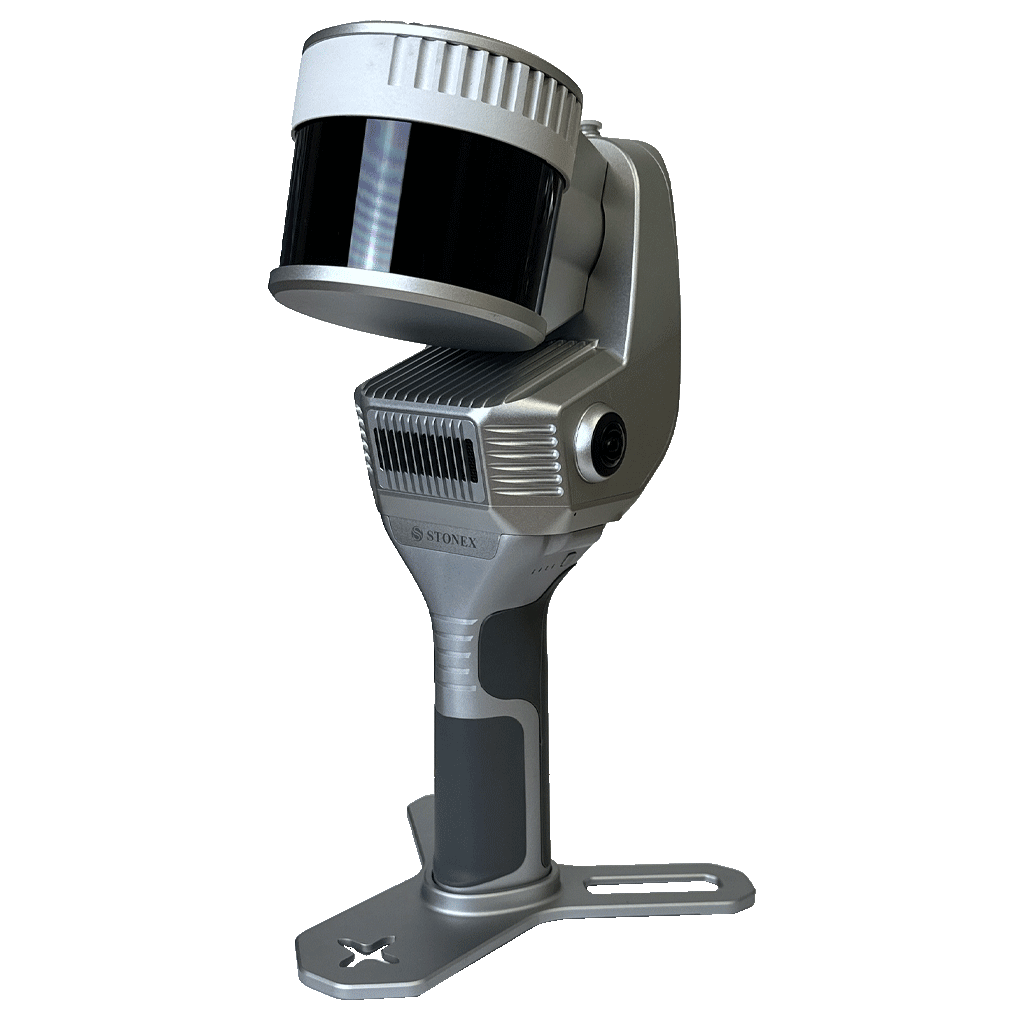

X200GOマルチプラットフォーム LiDAR SLAM
X200GO SLAM Laser Scanner
X200GOは、ハンディ、ドローン、車載、すべてのアプリケーションに対応可能な1台で複数の役割を担うことができるコストパフォーマンスの高い革新的なLiDAR SLAMです。
300m計測可能なレーザーを搭載し、レーザー部分が回転することによって、あらゆる環境においても計測可能なシステムとなっております。
2つの高解像度広角カメラおよびRTKモジュールを搭載していることにより、リアルタイムにカラー点群生成と座標付けを可能にし、現場において三次元計測結果を即時確認することができます。
カメラで取得した高解像度画像を三次元データと重ね合わせることができ、現場の状況を画像でも確認することが可能です。さらにその画像上において、計測することもできます。
SLAMモードのみではなく、X-WHIZZモード機能があり、地上型レーザーと同等の計測も可能な最新式のLiDAR SLAMです。
The X200GO is the latest generation system based on the SLAM technology, capable of covering any customer need.
The range of up to 300 metres and a rotating head that maximises the coverage of the laser beam make it versatile for any environment. Equipped with 2 cameras and RTK receiver for real-time point cloud colouring and orientation.
The two cameras provide navigable and measurable panoramic cameras superimposed on the 3D model. The system allows for the survey of static scans in X-Whizz mode, automatically aligned to the SLAM survey.
Backpack, shoulders hook, car mount and holder for DJI M350 can complete the system.

XVSビジュアルSLAM(次世代型写真測量システム)
XVS vSLAM 3D Scanner
XVSはこれまでに見たことのない次世代のハンディ写真測量システムです。
特に構造物の計測に適しており、点群データだけではなく、メッシュデータも自動生成することで、3次元データでありながら、写真同等のデータを得ることができます。
本システムでは、高解像度画像、慣性システムおよび複合したアルゴリズムに基づいた技術が用いられています。XVSでシナリオを記録すると、写真測量技術によって3Dモデルが生成されます。歩きながら動きのあるシーンを記録すると、リアルタイムインターフェイスがデータ記録方法をガイドし、推奨の移動速度を提示します。そして必要に応じて計測エリアへ戻って十分に画像がオーバーラップするようにします。
Visual SLAMシステムのおかげで、リアルタイムにタブレット上に軌跡が表示されます。慣性計測装置(IMU)センサーは、アルゴリズムが連続した画像ブロックを生成するのに役立ちます。
オフィスに戻り3Dモデルを生成するための手順は、STONEX社のクラウドへデータをアップするだけで完全に自動化されます。
The system uses a technology based on the integration of high-resolution images, inertial systems and a complex algorithm: capturing a scenario with XVS, 3D model will be generated through photogrammetric techniques.
Walking and capturing the scene in motion, a real-time interface will guide you in the data collection, suggesting the speed of your movement and if necessary returning to an area to have enough image overlapping.
Thanks to Visual SLAM system (Simultaneous localization and mapping), your trajectory is displayed in real-time on a tablet. The Inertial Measurement Unit (IMU) sensor helps the algorithm to generate a continuous image block. The best result will be obtained automatically. Back in the office, the procedure to generate the 3D model is fully automatic, through a desktop PC.
Data coming from XVS can be integrated with video from UAV drone or any camera for a complete reconstruction of the area.

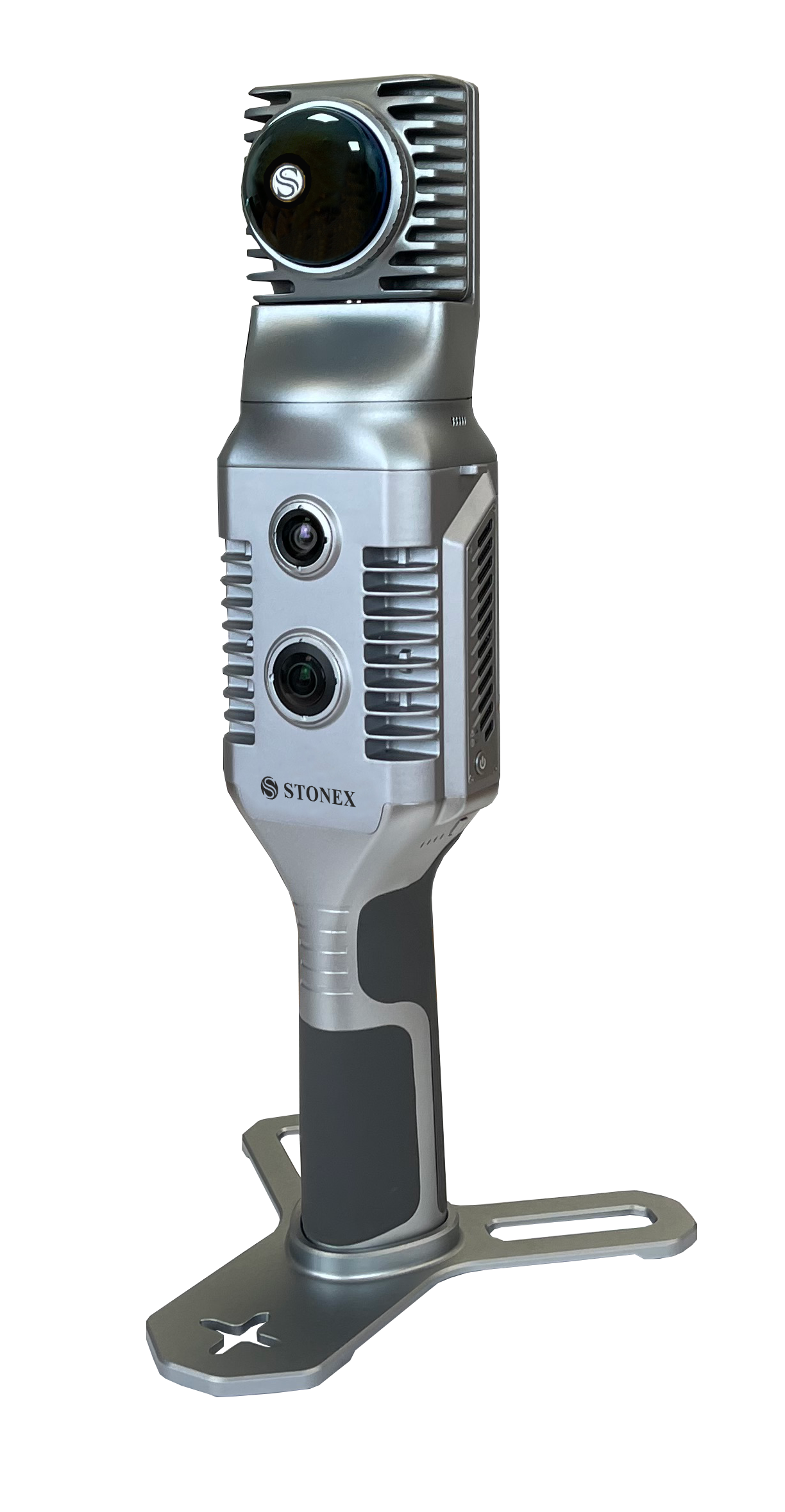

X70GO LiDAR SLAM(ハイブリッドスキャナー)
X70GO SLAM Laser Scanner
X70GOは、360° 回転するレーザーヘッドを搭載し、SLAMアルゴリズムと組み合わせることで、高精度な点群データを生成します。
SLAMモードと地上型レーザーモードを組み合わせた今までにない、ハイブリッド型LiDAR SLAMです。
X70GOは、慣性ナビゲーションモジュール、高性能コンピュータ、ストレージシステムを組み合わせたリアルタイム3Dモデル構築デバイスです。
1,200万画素の可視光(カラー)カメラは、カラー点群用に使用され、ビジュアルカメラにより、より詳細な点群取得が可能となります。
計測結果はすぐにスキャナー内部に保存され、その場で点群データを確認することができます。カラー点群およびより高精度な点群データを必要とする場合、GOpostソフトウェアで後処理を行うことで得ることができます。
最適なアプリケーションは、トンネル計測、市街地における境界測量、建物外部および内部を連続して計測する家屋調査などです。
X70GO is a real-time 3D model reconstruction device which integrates inertial navigation module, high performance computer and storage system. It is equipped with a 360 degree rotating head, which, combined with the SLAM algorithm, generates high-precision point cloud data.
A 12 MP visible-light camera provides texture information, while a visual camera guarantees stronger real time preview with GOapp. Mapping results are generated immediately inside the scanner, right after scanning: choose if you want to color them and improve their accuracy, postprocessing with GOpost software.
