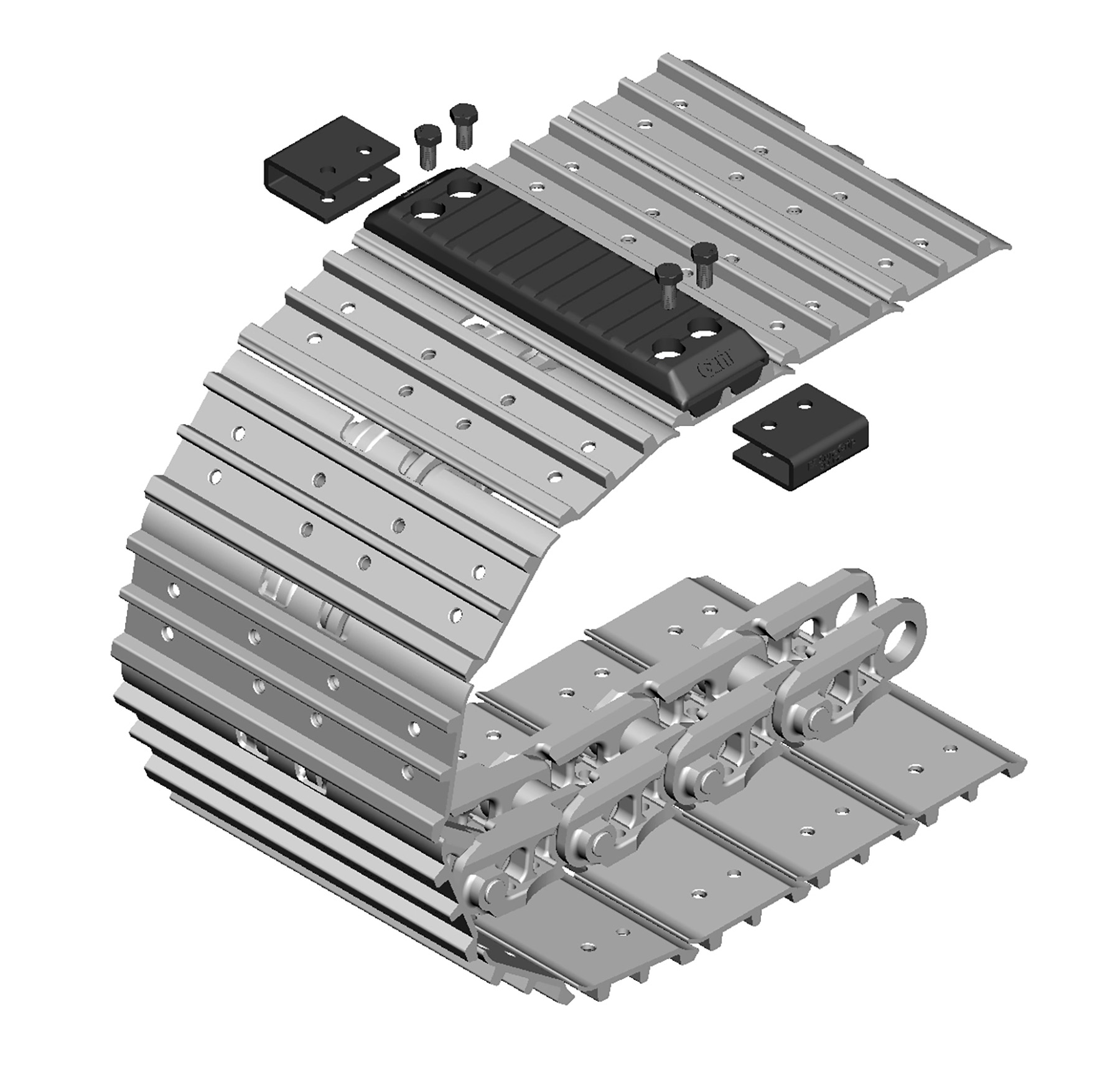

EZ SureGrip Clip-On Pad is SRJ patented design for steel grouser, especially with no bolt holes. This design uses D-shape angle clips and vertical bolting through embedded coupling nuts to grip steel grouser. The grip is very strong and so it can be used on steel grouser with holes instead of bolt-on pad. We got a Japanese patent, #7185778 on Nov 29, 2022.

EZ SureGrip Clip-On Pad is SRJ patented design for steel grouser, especially with no bolt holes. This design uses D-shape angle clips and vertical bolting through embedded coupling nuts to grip steel grouser. The grip is very strong and so it can be used on steel grouser with holes instead of bolt-on pad. We got a Japanese patent, #7185778 on Nov 29, 2022.

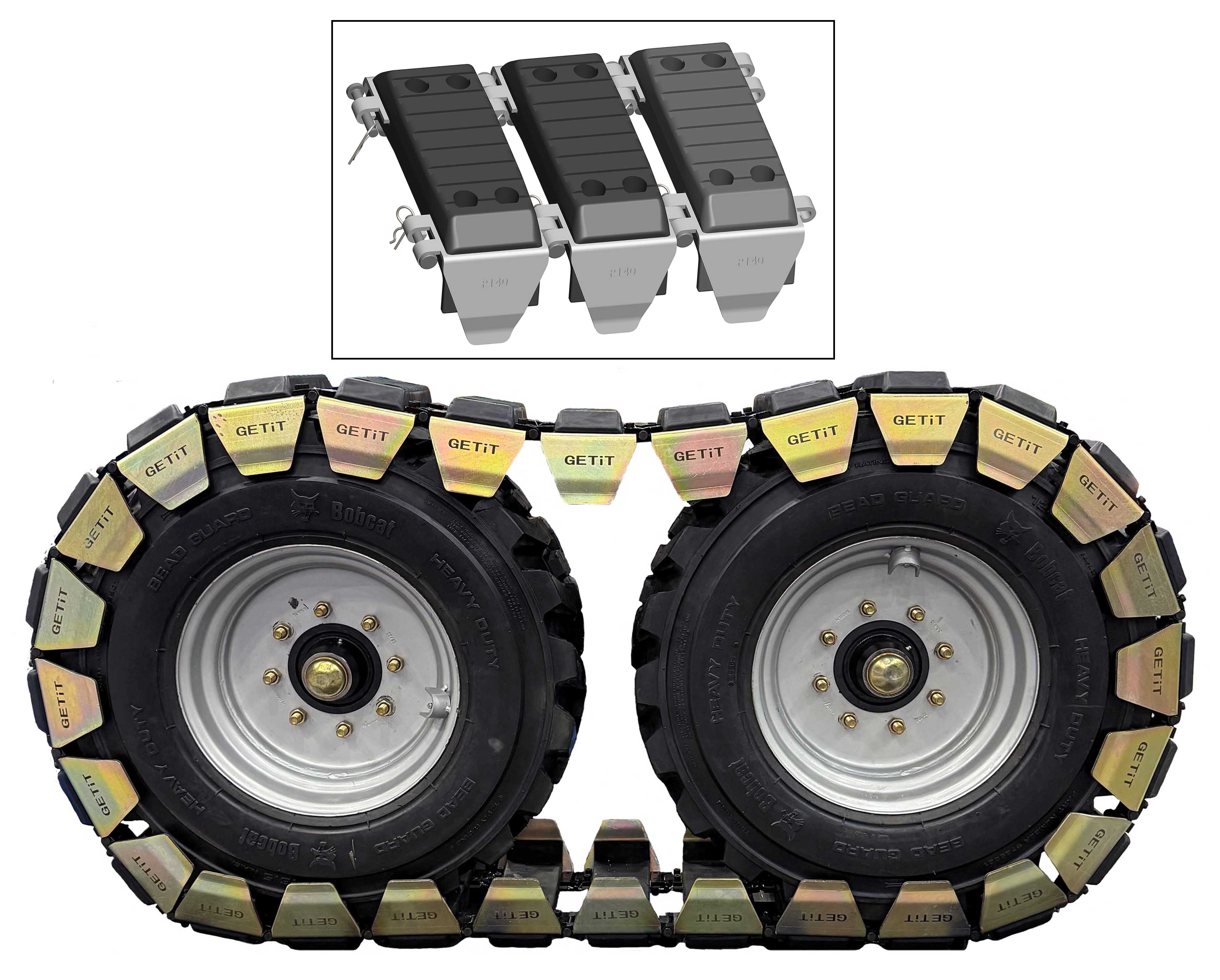

Steel shields added to EZ SureGrip clip-on pad concept - Japanese patent #7185778 were designed to be connected side by side making a set of pad track over tires. Several different sizes (pitches) can be used in mixing for tight tension adjustment. This type of OTT has following advantages:
1. Easy Assembly ＆ Installation
2. Easy Damaged Pad(s) Replacement
3. Easy Pitch Adjustment (for proper tension) by using different pitch steel shields: P1: 140mm, P2: 145mm, P3: 150mm, P4: 155mm

Steel shields added to EZ SureGrip clip-on pad concept - Japanese patent #7185778 were designed to be connected side by side making a set of pad track over tires. Several different sizes (pitches) can be used in mixing for tight tension adjustment. This type of OTT has following advantages:
1. Easy Assembly ＆ Installation
2. Easy Damaged Pad(s) Replacement
3. Easy Pitch Adjustment (for proper tension) by using different pitch steel shields: P1: 140mm, P2: 145mm, P3: 150mm, P4: 155mm

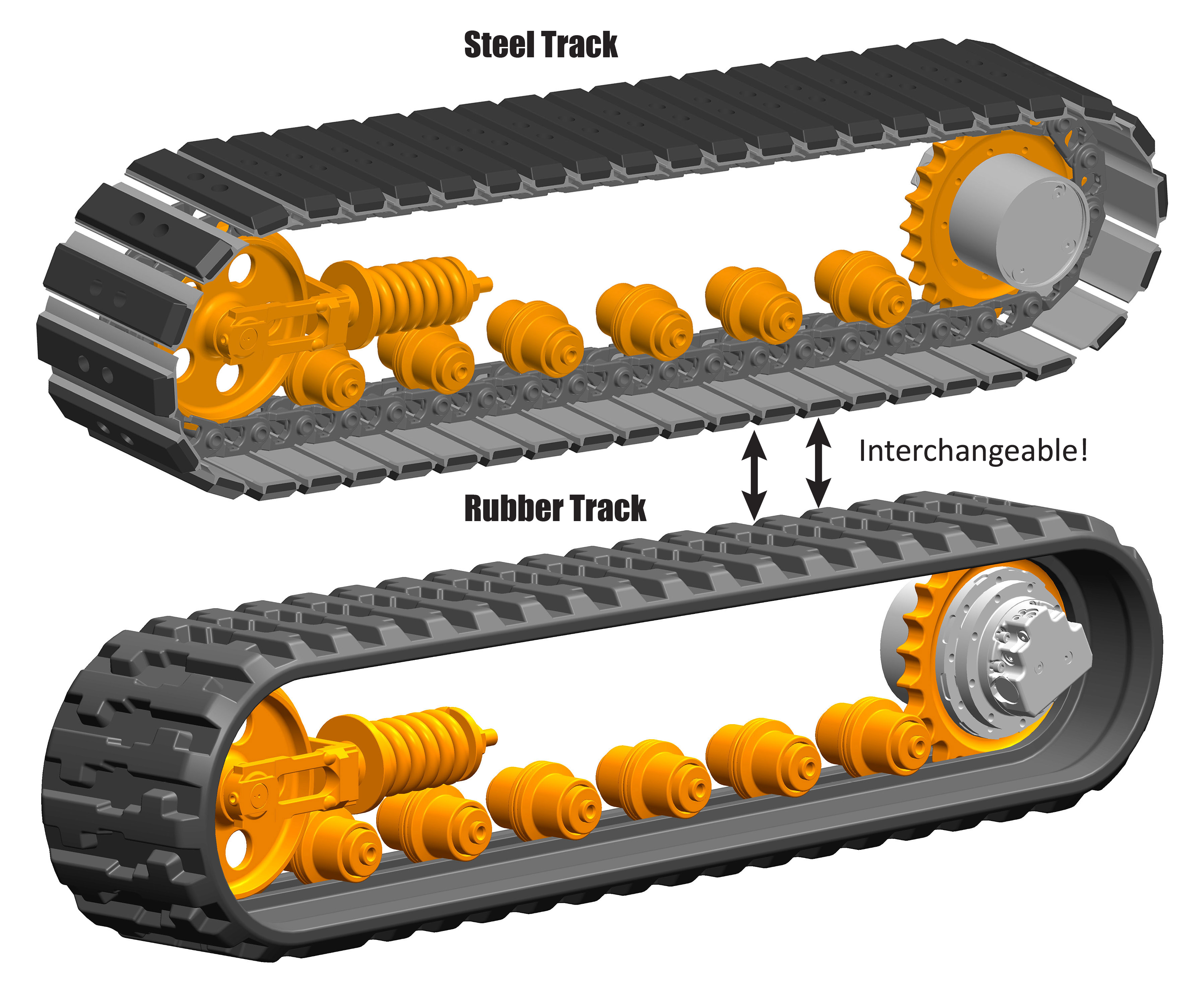

We are also specialized in designing a complete undercarriage set and components. We design steel track set with rubber pad, which can be replaced interchangeably with rubber track. The components include sprocket, roller, idler with tensioner and drive motor.

We are also specialized in designing a complete undercarriage set and components. We design steel track set with rubber pad, which can be replaced interchangeably with rubber track. The components include sprocket, roller, idler with tensioner and drive motor.
