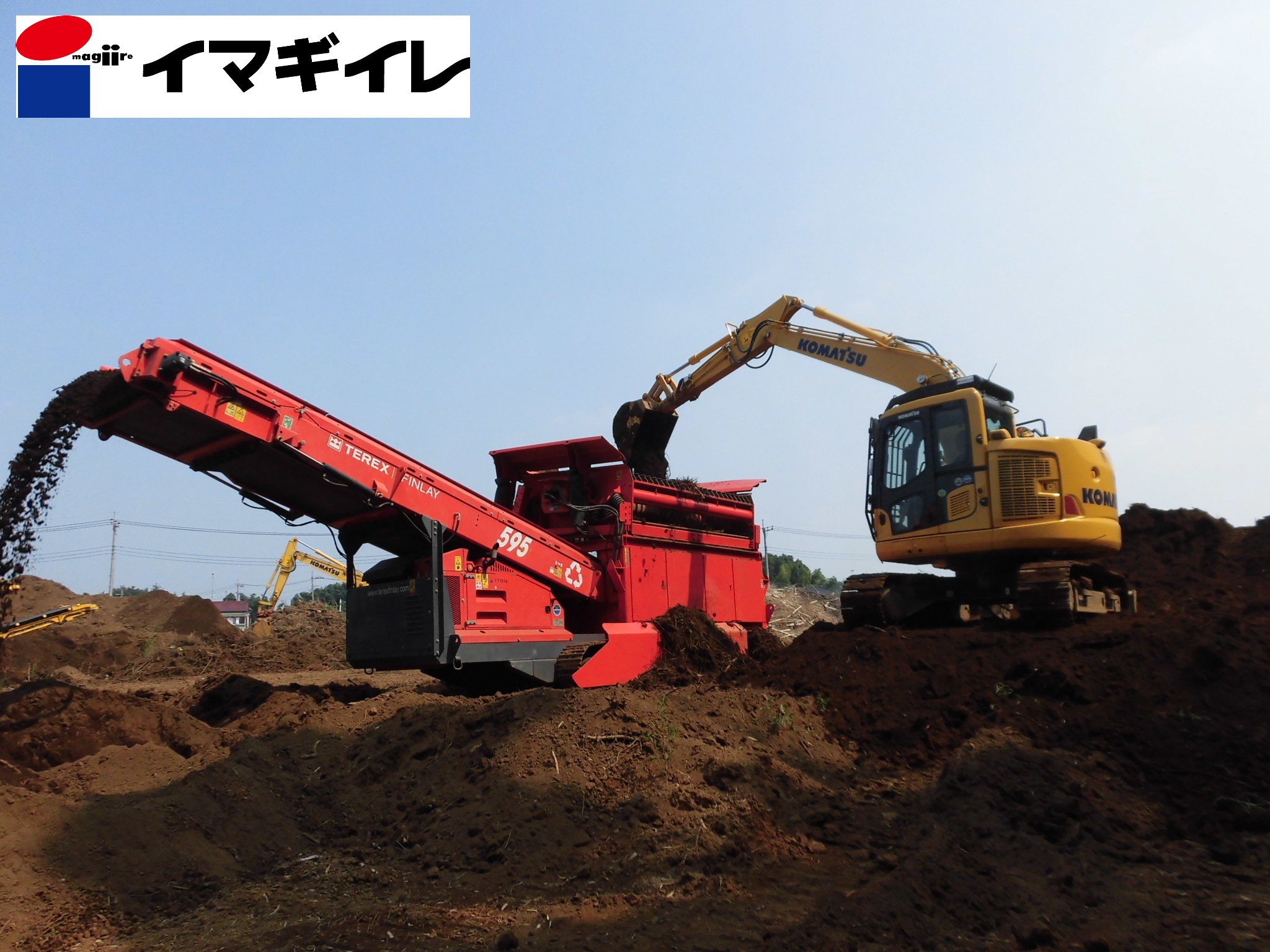

自走式スクリーン・FINLAY595
MOBILE SCREEN FINLAY595
FINLAY595は自走式2選別スクリーンです。小さな機体の為、抜群の機動性を発揮し軟弱地でも作業が可能です。トップデッキのグリズリバーで大塊を除去しボトムデッキの織網で選別します。ホイルローダーでも投入しやすい大型ホッパーでスクリーンの傾斜角は油圧により2°~25°まで15段階で調整でき、材料に合わせた角度で選別できます。
自走式スクリーンは他に3選別のFINLAY883+、4選別のFINLAY683、2選別トロンメルスクリーン5800Tr・TTS518T・TTS620T等もレンタル機種としてご用意しております。販売・修理・メンテナンスも行っておりますのでお問い合わせをお待ちしております。
The FINLAY 595 is amobile screen machine that can sort in 2 directions. Due to the machine is samll. It has excellent manoeuvrability and the ability to work in soft ground. The top deck bar removes large blocks and the bottom deck sorts the size of the materials by Weaved nets. The large hopper can be easily loaded with a wheel loader and the screen can be hydraulically tilted from 2to 25angles in 15 steps for sorting at an angle to suit the material.
We have other models available, including the FINLAY883+ that can sort in 3 directions, FINLAY683 that can sort in 4 directions, and trommel screens 5800Tr, TTS518T, and TTS620T that can sort in 2 directions.We also provide sales, repairs, and maintenance, if you have any questions please contact we.

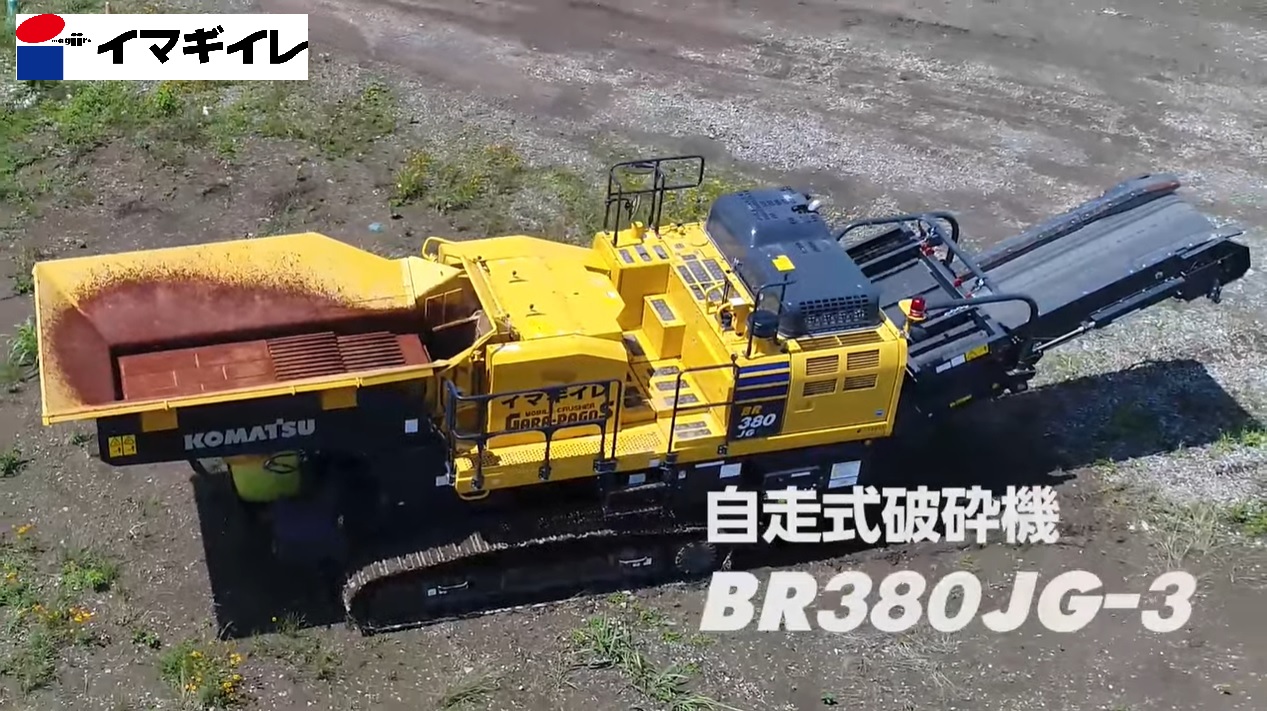

自走式破砕機・ガラパゴスBR380JG
MOBILE CRUSHER GARA-PAGOS BR380JG
BR380JGは自走式ジョークラッシャです。供給口サイズは1065mm×550mmと大きく、出口隙間セットは簡単に変更できる全自動調整システムを採用。摩耗時でもワンタッチ操作で自動調整可能です(2~3分で完了)。クラッシャ保護機能は信頼性の高いロックシリンダによる油圧式です。万一、金属などの異物をかみ込んでもロックシリンダが縮んでクラッシャを保護し、即座に自動停止してオーバー材の排出を防ぎます。
自走式クラッシャは他にバッテリー搭載のジョークラッシャNE200HBJ、コーンクラッシャC-1540・C-1545、インパクトクラッシャBR250RG・I-100等もレンタル機種としてご用意しております。販売・修理・メンテナンスも行っておりますのでお問い合わせをお待ちしております。
The BR380JG is a mobile jaw crusher. The feed opening size is up to 1065 mm x 550 mm and the exit gap set uses a fully automatic adjustment system that can be easily changed. It is easily adjust even during wear (takes only 2 to 3 minutes).
The crusher protective function is combined with hydraulic cylinder. Even if a foreign matter such as a piece of metal is caught in the crusher, The crusher immediately stops to prevent large material leave from crusher outlet.
We have other models available, including the NE200HBJ jaw crusher that loaded battery, C-1540 and C-1545 cone crushers and BR250RG and I-100 impact crushers. We also provide sales, repairs, and maintenance, if you have any questions please contact we.

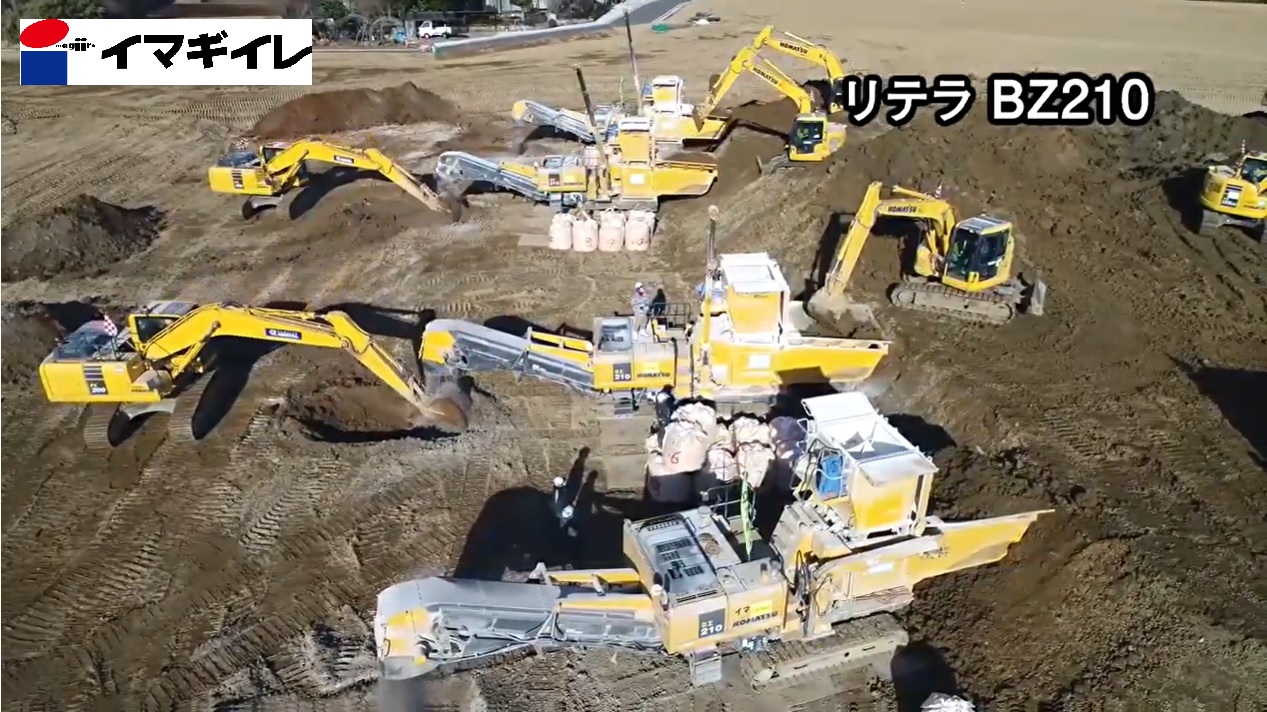

自走式土質改良機リテラ・BZ210
MOBIL SOIL RECYCLER RETERRA BZ210
BZ210は自走式土質改良機です。原料土を固化材と混合し改良土を製造します。混合機には、瞬間的にほぐして確実に混合するソイルカッタ+3軸大型ロータリハンマ+アフタカッタを採用し広範にわたる建設発生土を高品質な改良土に改良します。また、混合モードは4種類に切り替えられ、分野・土質に応じて最適な混合性能を発揮します。イマギイレのレンタルでは大型改良現場に対応できるサイロ仕様、原料土の性質を変える液体添加装置仕様、性質の違う2種類の原料土を混合する2種混合仕様もございます。
自走式土質改良機は他にSR2000Gもレンタル機種としてご用意しております。販売・修理・メンテナンスも行っておりますのでお問い合わせをお待ちしております。
The BZ210 is a mobile soil recycler. It mixes raw material with solidifiers to produce an improved soil. The mixing chamber is equipped with a soil cutter, three large rotary hammers and an aftercutter that can instantly loosen and mix soil completely. producing high quality soil generated from a wide rang of construction sites. In addition, there are mixing modes which demonstrate optimum mixing capactity depending on the application and soil conditions.
For the rental market, IMAGIIRE offers rental that a silo specification that can be used for large improvement sites, a liquid additive pump and tank that changes the conditions of the raw material, and two mixing specifications that mix two types of raw material with different conditions .
The SR2000G mobile soil recycler is also available for rental. We also provide sales, repairs, and maintenance, if you have any questions please contact we.
