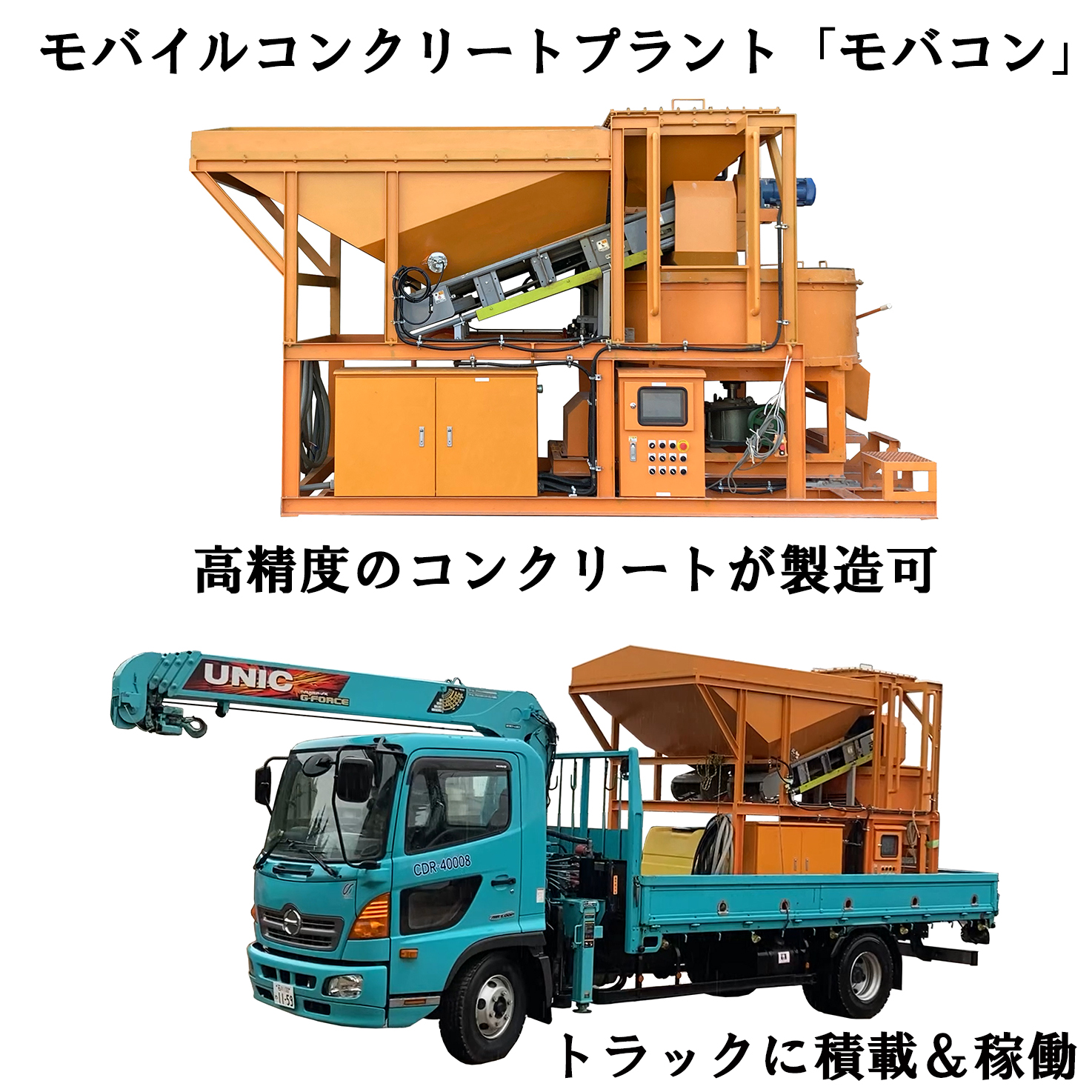

小型移動式クレーン車に搭載できる 車載式の生コンクリート製造プラント
"Mobaile Concrete Plant" is a ready-mixed concrete production plant that can be mounted on a small mobile crane truck.
モバコンはトラッククレーン車等に積載できる、車載型の生コンクリート製造プラントです。
4トン車に搭載可能な製造プラントですので、狭い道路や山間部、離島など大型車が入らない多様な工事現場で機動力を発揮します。
Mobacon is a vehicle-mounted ready-mixed concrete production plant that can be loaded onto truck cranes, etc.Since this is a manufacturing plant that can be mounted on a 4-ton vehicle, it can be used in a variety of construction sites where large vehicles cannot fit, such as narrow roads, mountainous areas, and remote islands.

現場のニーズに応えるため多様な特殊生コンが製造可能に
It becomes possible to manufacture a variety of special ready-mixed concrete. We respond to the needs of the field.
モバコンはJIS生コンクリート工場で製造困難な特殊な生コン製品等を現場で正確に計量して製造し、供給することを目的として開発しました。特殊生コンクリート製品は、当社が扱う「瓦のコンクリート舗装材」や、インフラの維持管理に必要な「超速硬コンクリート」、その他にも繊維混入やポーラスコンクリート等、様々なものが挙げられます。材料の計量(表面水測定)や、水&混和剤の投入等も全て自動で行い、1バッチ当たり0.05~0.4㎥の間で製造可能です。
MOBACON was developed for the purpose of manufacturing and supplying special ready-mixed concrete products and other products that are difficult to manufacture at JIS ready-mixed concrete plants by accurately weighing them on site. Special ready-mixed concrete products include concrete pavement materials for roof tiles that we handle, ultra-fast hard concrete required for infrastructure maintenance, and a variety of other products such as fiber-mixed and porous concrete. We can produce between 0.05 and 0.4 m3 per batch, with all material weighing, water and admixture dosing performed automatically.

自動計量・制御で熟練作業員が不要
Mobacon is equipped with automatic metering and control. No need for skilled workers.

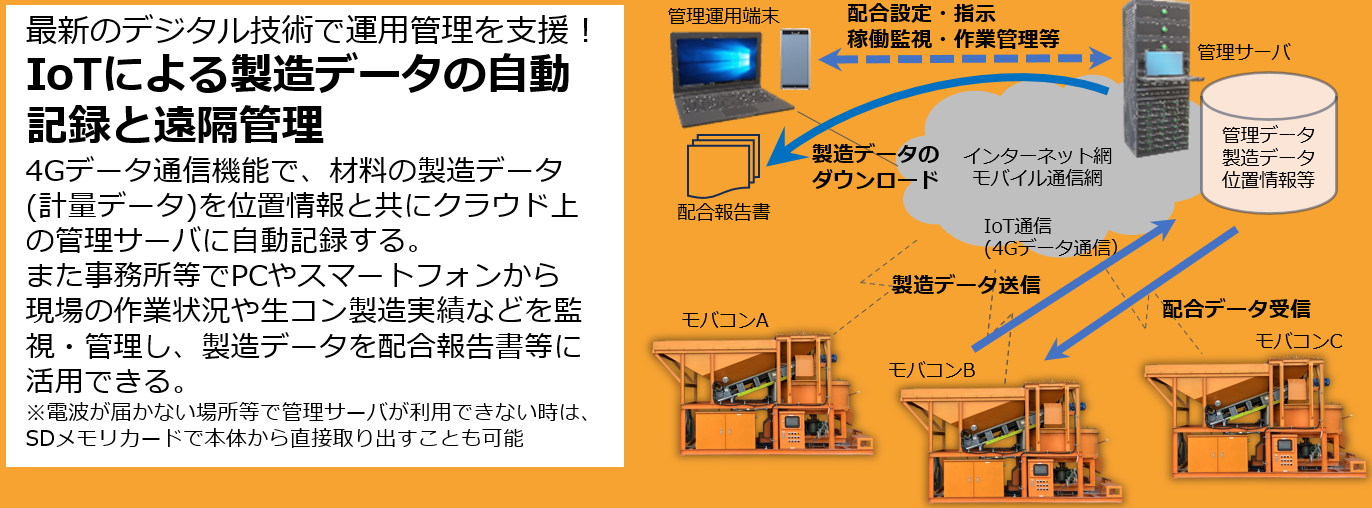

モバコンはロードセル(計量器)を搭載して材料を正確に計量し、計量データを製造ロット毎に記録します。事前に設定された材料の配合条件を選び、必要ボリュームを入力してスタートボタンを押すだけの簡単操作です。記録されたデータはSDカードやクラウドに記録され、PC等で管理することが可能です。また、Bluetoothや通信ユニットが備えられ、スマートフォンやタブレット等で管理することも可能です。GPSも備えていますので、いつどこでどの配合で製品を製造したかがわかる、トレーサビリティが確保されたシステムになっています。
Since MOBACON is equipped with a load cell, materials can be accurately weighed and the weighing data can be recorded for each production lot. Simple operation is performed by selecting pre-set material blending conditions, entering the required volume, and pressing the start button. Recorded data is stored on an SD card or in the cloud and can be managed on a PC or other device. The system is also equipped with GPS to ensure traceability.
