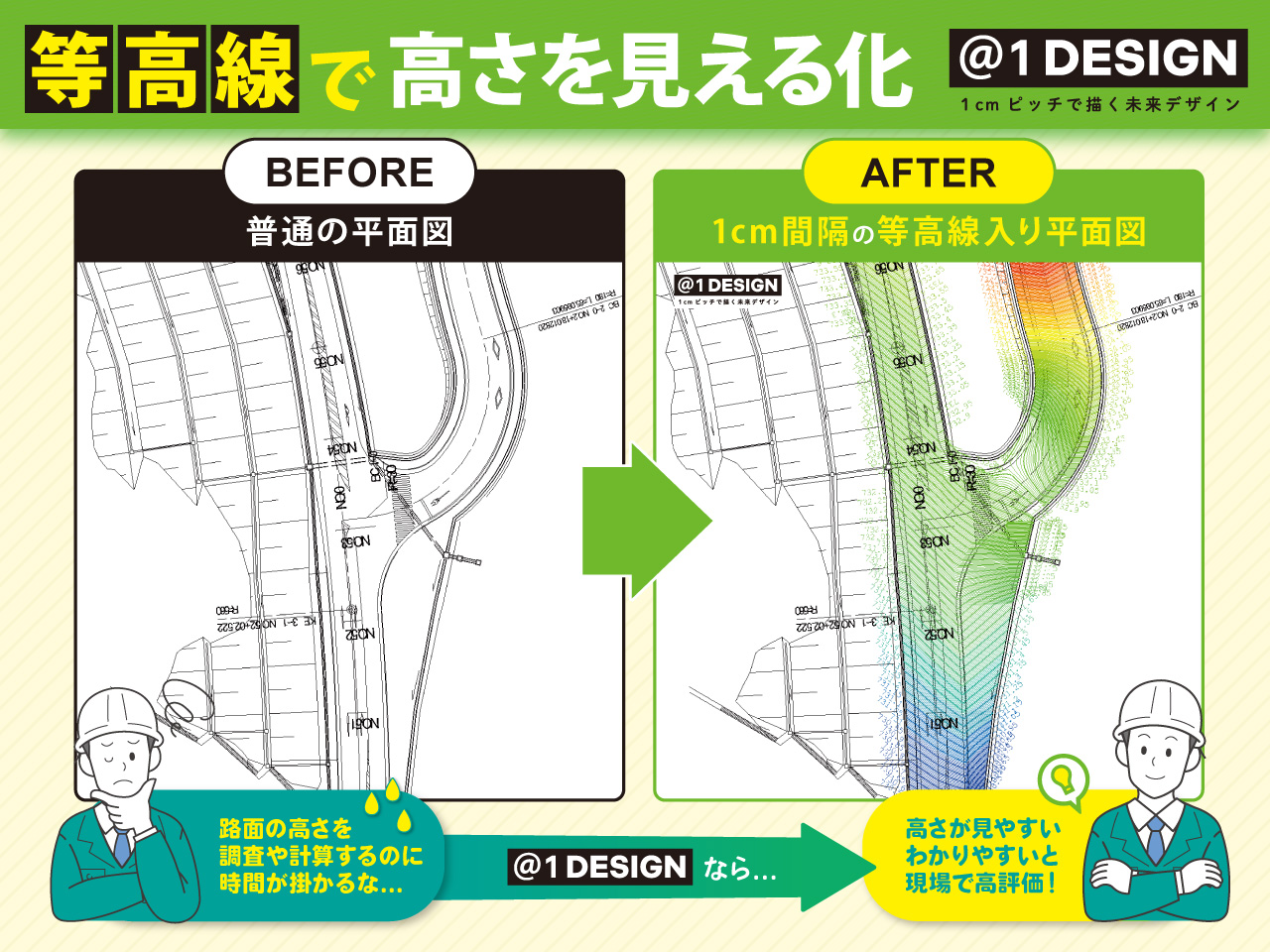

等高線による施工図作成 @1DESIGN
At 1 DESIGN - Creating construction drawings from contour lines
@1 DESIGN(アットワンデザイン)は、道路や駐車場の仕上がり高さを1cm単位の滑らかな等高線で可視化する施工図作成サービスです。
現場監督が抱える高さの悩みを、正確で直感的なビジュアルで解決します。
道路はもちろん、駐車場や庭園などにも活用できます。
~ 舗装修繕工事において ~
【着工前に高さの異常を事前に発見】
事前に高さの異常を可視化し、計画段階で問題を解決できます。
【滑らかで美しい路面の提案が可能】
設計高さの微調整で、より滑らかで美しい路面を提案できます。
【平坦性の向上】
マンホールの擦り付け、橋梁との取り合わせがスムーズにいくか確認できます。
【計算機なしで高さの目安を把握】
等高線を追う事で、計算機なしで測点以外の高さも分かります。
【水問題を事前確認】
水の流れが見える(水が落ちる方向がわかる)ので水の問題を事前に把握できます。
【交差点の見える化】
本線、支道、歩道、路肩の高さや勾配の変化が確認できます。
’@1DESIGN’ is a construction drawing creation service that visualizes the finished height of roads and parking lots with smooth contour lines in 1cm increments.
Solves the problem of adjusting the construction height with accurate and intuitive visuals.
It can be used not only for roads but also for parking lots and gardens.
--- In pavement repair work ---
[Detect height abnormalities before construction begins]
You can visualize height anomalies in advance and solve the problem at the planning stage.
[You can propose a smooth and beautiful road surface]
By fine-tuning the design height, we can offer smoother and more beautiful road surfaces.
[Improved flatness]
You can check whether the manholes are fitted smoothly and whether they are aligned with the bridge.
[Get approximate height without a calculator]
By following the contour lines, you can find the heights of points other than the measurement point without using a calculator.
[Check drainage problems in advance]
You can see the water flow (know the direction the water is falling) so you can detect water problems in advance.
[Visualization of intersections]
You can check the changes in height and gradient of main roads, sidewalks, and shoulders.

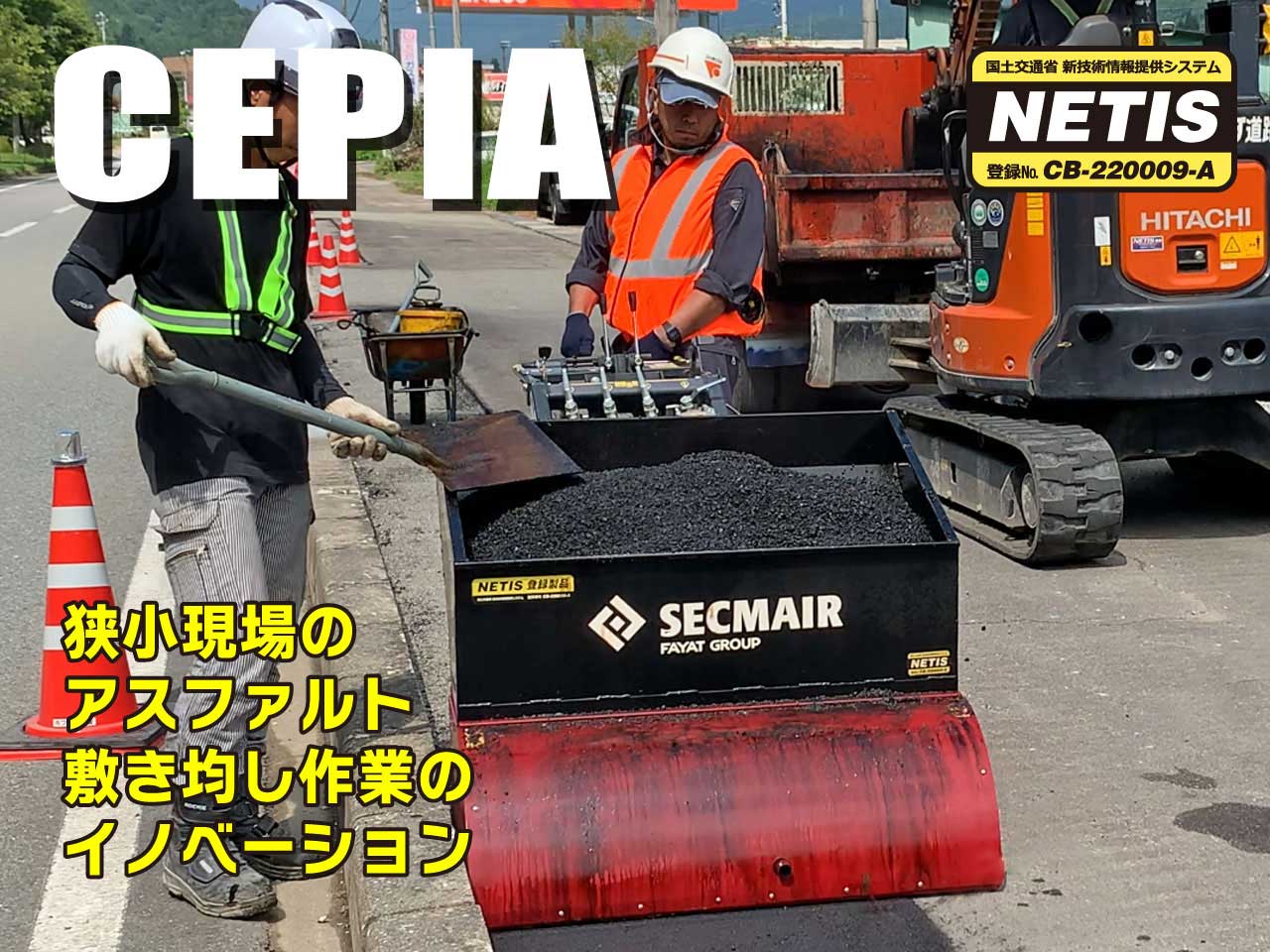

自走式アスファルト敷均し機械 CEPIA
CEPIA - Mehanised Hot-Mix and Chipsreading
CEPIA は自走式のアスファルト、およびチッピング材敷き均し機械です。
機械式の利便性で⽣産性を向上させるとともに、労働⼒を削減し、作業員の疲労度を⼤幅に軽減することで、今後深刻化が予想される⼈材不⾜問題の解決にも役⽴ちます。
【作業員の負担を軽減】
・自走式なので、施工時の作業員の身体的負担を軽減できます。
・従来工法と比較して少ない人員での施工が可能です。
【小型・軽量】
・全長約1.7m(輸送時)、重量約220kg(空車時)と小型・軽量なので、軽トラック等で運搬可能です。
・回送に必要な手間・経費を削減できます。
小回りが効くので、スペースが限られている場所でも、正確な作業が可能です。
【簡単操作】
・高さ・傾き調整機能により、連続的で一貫性のある敷きならしが可能です。
・基本操作はとても簡単で、初めての方でも短期間のトレーニングですぐにご使用いただけます。
CEPIA is a self-propelled asphalt and chipping spreading machine.
The convenience of a mechanical system increases productivity while reducing the labor required and significantly reducing worker fatigue.
It will also be useful in resolving the labor shortage problem, which is expected to become more serious in the future.
[Reducing the burden on workers]
- Because it is self-propelled, the physical burden on workers during construction is reduced.
- Construction can be done with fewer personnel compared to conventional methods.
[Compact and lightweight]
- With a total length of approximately 1.7 m (when transported) and a weight of approximately 250 kg (when empty), it is small and lightweight, so it can be transported in a light truck, etc.
-It reduces the effort and expenses required for transportation.
It is maneuverable, so accurate work can be done even in places with limited space.
[Easy operation]
- Height and tilt adjustment functions allow for continuous and consistent laying.
- Basic operation is very simple, and even first-time users can get started immediately after short training.

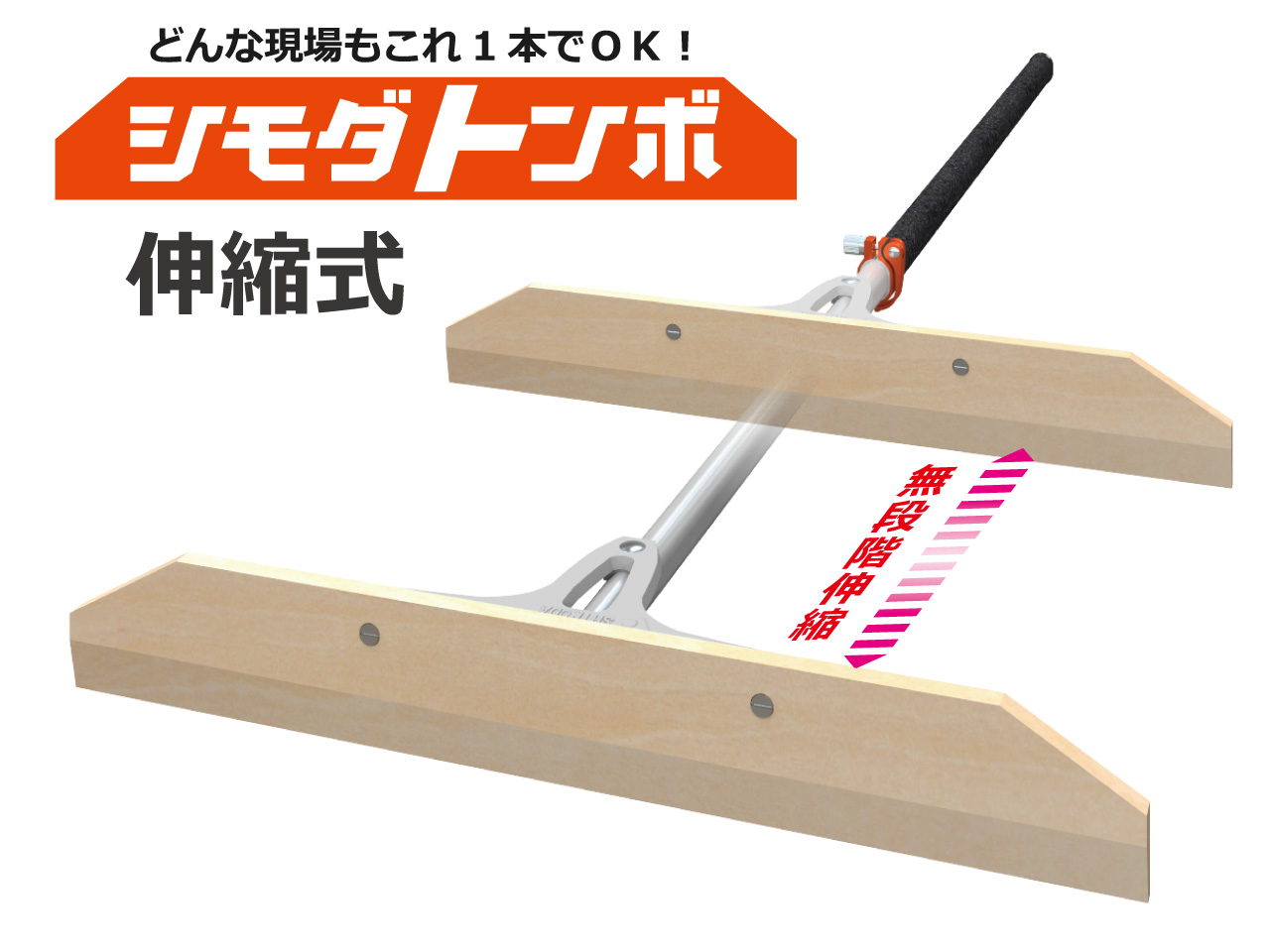

舗装屋が考えた舗装用レーキ シモダトンボ
Shimoda Tombo - Extendable paving rake
シモダトンボ伸縮式 は舗装現場から生まれた舗装専用のレーキです。
最短から最長までレバー操作で簡単に長さを変えられるので、これ1本で様々な現場環境に対応可能。
安全に、かつスピーディに現場作業を行えます。
【現場に合わせてワンタッチで伸縮自在】
後方に障害物がある場合や、作業帯が十分に確保できない場合などでも、手元のレバーでワンタッチで好みの長さに調節できます。
コンパクトに縮めれば、移動や収納にも便利です。
【色々な場面に対応できる種類豊富な引板】
割れにくく、合材が付着しにくいブナ製をはじめ、アルミ製、スチール製、ステンレス製等、豊富なバリエーションをご用意しています。
お客様のご要望に合わせて特注サイズにも対応いたします。
【 軽くて耐久性抜群】
各部にアルミを採用した本体は軽くて強度抜群。
より握りやすく、力が入れやすいよう、グリップの断面形状にもこだわりました。
さらに、表面は特殊樹脂をコーティング。
過酷な現場条件にも耐えられるタフな1本です。
【こわれても安心】
お客様に安心してお使いいただくため、アフターサポートも万全。
現場で壊れたり、部品を紛失した場合でも引板はもちろん、ネジ1本単位で全ての部品がご購入いただけます。
SHIMODA TOMBO Telescopic Rake is designed specifically for paving, developed for use on paving sites.
The length can be easily changed by operating the lever, so this one rake can be used in a variety of worksite environments!
Onsite work can be carried out safely and quickly.
[One-touch extension and retraction to suit the site]
Even if there is an obstacle behind the machine or the working space is not large enough, you can adjust the length to your liking with one touch of the lever at hand.
It can also be folded up into a compact size for easy transport and storage.
[A wide variety of blades to suit a variety of situations]
We offer a wide variety of products, including beech, which is less likely to crack and does not easily become soiled with adhesive, as well as aluminum, steel, stainless steel, etc.
We can also accommodate custom sizes to meet your needs.
[Lightweight and extremely durable]
The body is made entirely of aluminum, making it light and strong.
We paid particular attention to the cross-sectional shape of the grip to make it easier to hold and apply force.
In addition, the surface is coated with a special resin.
This is a tough tool that can withstand harsh on-site conditions.
[No worries even if it breaks]
We provide thorough after-sales support so that our customers can use our products with peace of mind.
If something breaks on site or a part is lost, all parts can be purchased, down to a single screw, including pull plates.
