DCH RADIO LIMITED COMPANY

基本情報

屋内小間番号
22-28
ホームページアドレス

出展製品・サービス

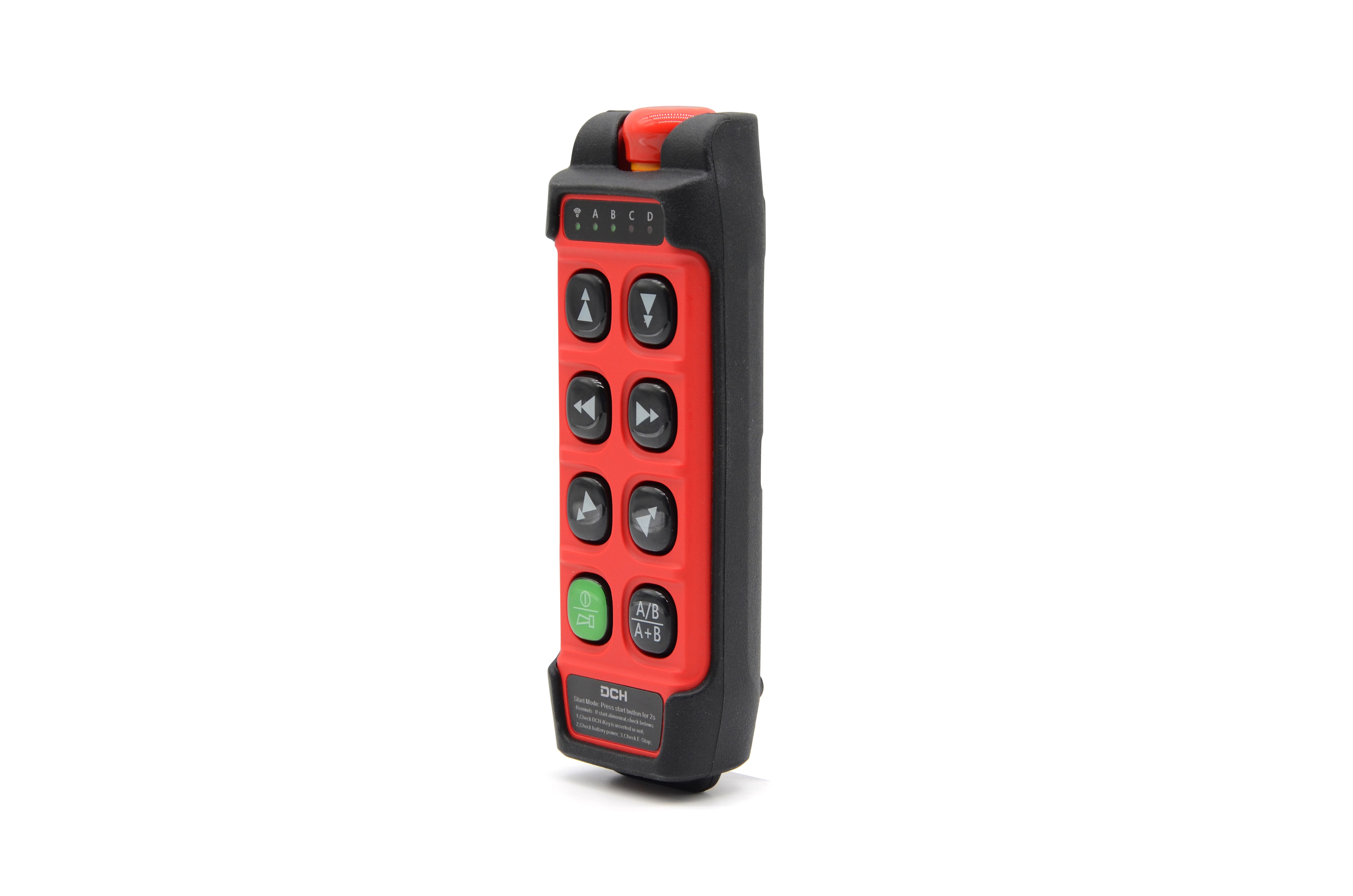

DCH-H32(8 double Pushbutton)

製品・サービス説明

Dimensions:180*60*35mm
8 double speed reset button
Weight: 300g
Current consumption: operating on average 3.75ma
Continue working time: 400h or 50days
Start:press start button for 2s
Antenna:internal
Emergency stop:Conforms to EN13849-1 standard
Enclosure material :PA6+30%GF with rubber cover
Protection degree: IP65(Enclosure type 4)
Power supply: 2 pieces AA battery
Buttons life: More than 5 million times
Humidity range: 0 - 97% maximum non-condensing
Center frequency range: 433-434mhz;
Response time:Less than 100ms
Safety: Active and passive Stop function,Parity & Checksum
Power (RF Output): 10mW(e.r.p),
Approximately operating range: 100m(328ft)
Temperature range: -25℃~+70℃
Button text:option of arrow,English text, s

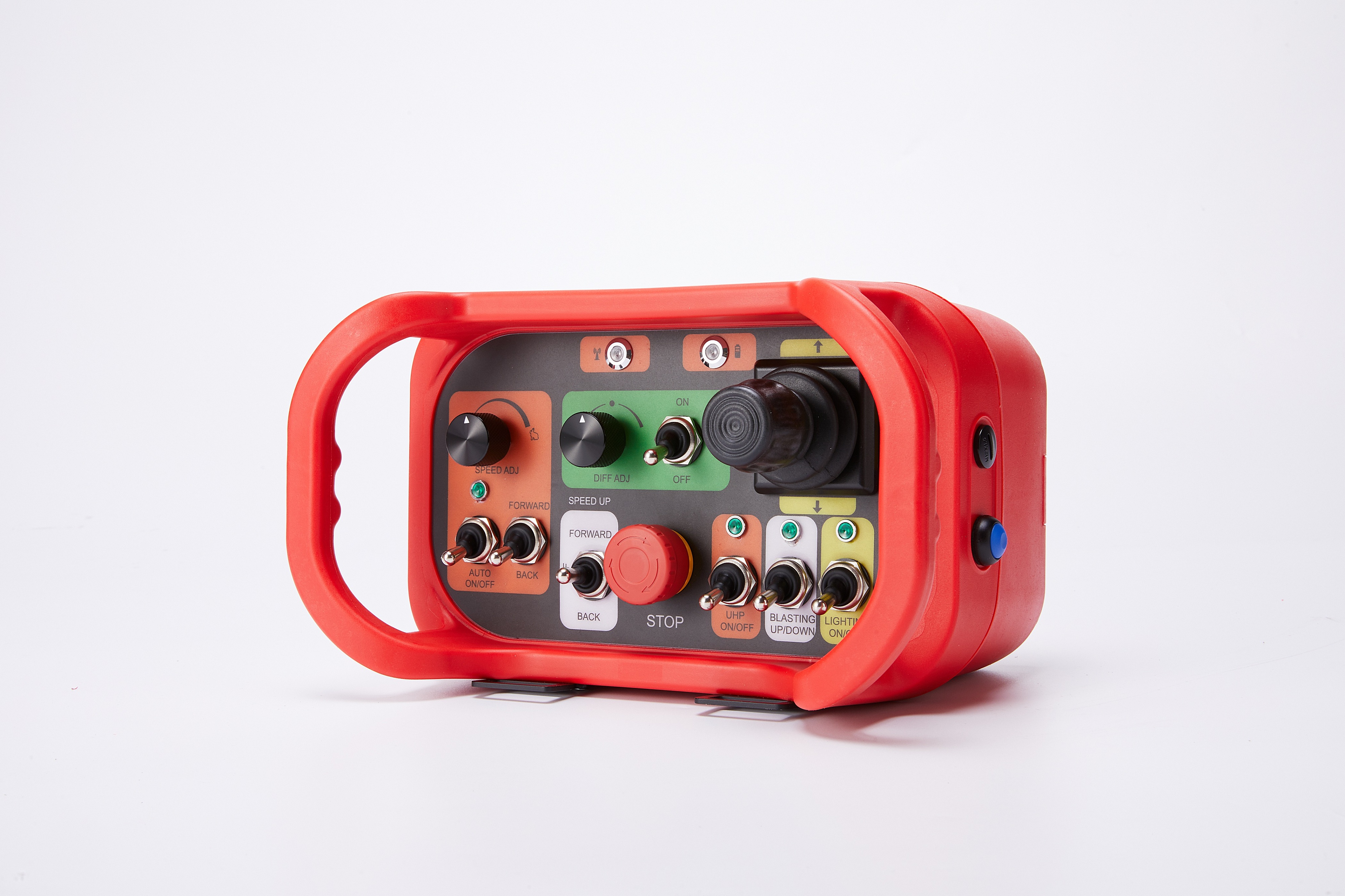

DCH-S24(up to 24DI + 8AI)

製品・サービス説明

Size: 230mm × 140mm × 100mm
Weight: 1200g-1800g
Antenna: internal or external
Start mode: click the start button or customize according to customer needs
Emergency stop switch: mushroom head type, complying with en13849-1 standard
Shell material: high strength engineering plastic
Protection grade: IP65
Components on both sides: start + 3 self reset or self-locking buttons
Support functions: up to 24 digital outputs (keys, toggle switches, rotary switches, etc.) + up to 8 analog outputs (straight rocker, cross rocker or potentiometer, etc.)
Panel identification: customized by customers
Smart key: DCH IKey

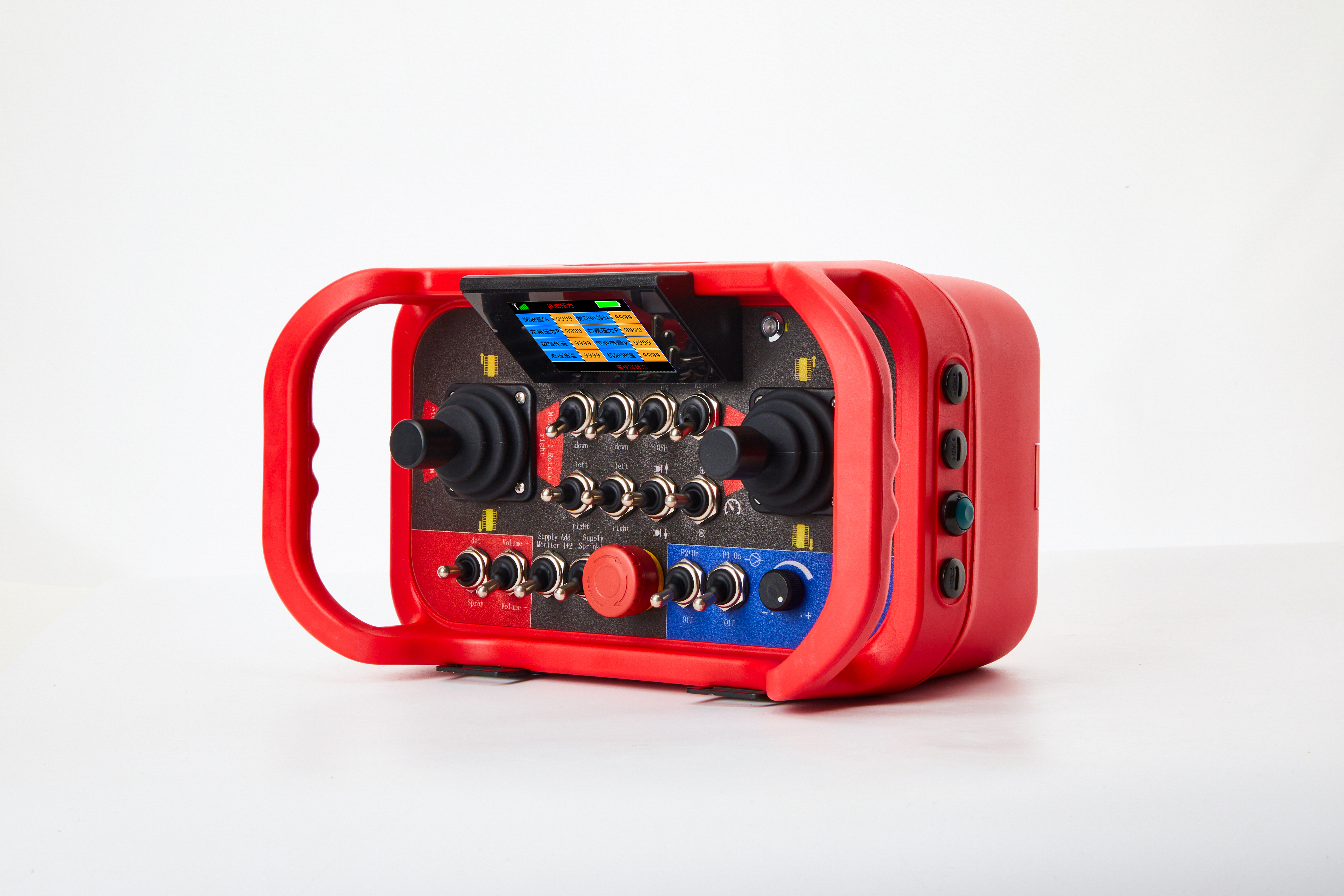

DCH-D48(with display up to 42DI + 8AI)

製品・サービス説明

DCH-D48 (up to 42DI + 8AI)
Size: 260mm × 160mm × 100mm
Weight: 1500g-2000g
Antenna: internal or external
Start mode: click the start button or customize according to customer needs
Emergency stop switch: mushroom head type, complying with en13849-1 standard
Shell material: high strength engineering plastic
Protection grade: IP65
Support functions: up to 42 digital outputs (keys, toggle switches, rotary switches, etc.) + up to 8 channels of analog signals (straight rocker, cross rocker or potentiometer, etc.)
Panel identification: customized by customers (for detailed panel drawing library, please ask the sales staff)
